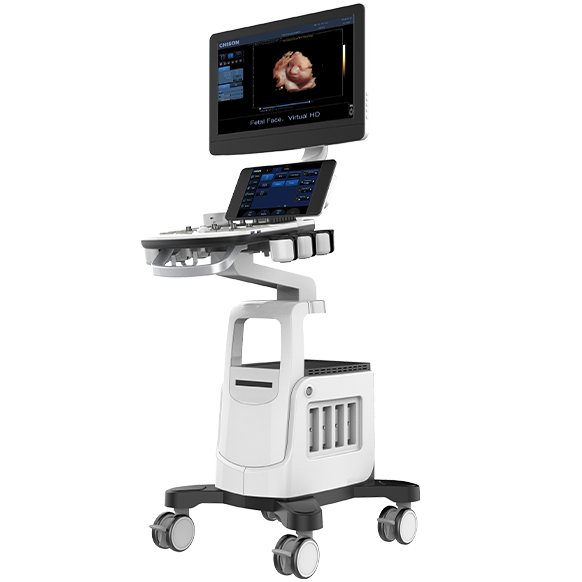

The CBit 4 Vet is a modern cart-based ultrasound system that combines advanced imaging, intelligent automation, and ergonomic design for veterinary diagnostics. It supports veterinarians in a wide range of applications with high-resolution imaging, fast workflows, and reliable performance — whether for abdominal exams, cardiology, MSK, or general practice.
Advanced Imaging – For Accurate Veterinary Diagnostics
Equipped with advanced image optimization technologies, the CBit 4 Vet delivers sharp, detailed images that support confident decision-making in veterinary care:
-
μ-scan – Enhances image clarity by reducing noise and sharpening edges.
-
X-contrast – Adjustable contrast settings for optimized tissue differentiation.
-
FHI (Frequency Harmonic Imaging) – Enables deep penetration with high resolution using adaptive transmission.
-
SR Flow – High sensitivity and resolution in color Doppler, ideal for visualizing fine vessels.
Supported Doppler Modes:
- Pulsed Wave (PW)
- Continuous Wave (CW)
- Color Flow Imaging (CFI)
- Power Doppler
- Directional Power Doppler Imaging (DPDI)
Workflow Automation – Fast and Intuitive
-
Auto-Freeze – Automatically freezes the optimal frame.
-
Auto Optimization (AIO) – One-button optimization of image and Doppler settings.
-
Auto Measurement – Automates routine measurements.
-
Auto IMT – Automatically measures intima-media thickness in vascular exams.
Advanced Imaging Tools
-
Quantitative Elastography – Displays tissue stiffness using color maps and strain ratio; ideal for tendons, liver, spleen, and other soft tissues.
-
Smart HIP – Diagram-guided hip scanning tool, useful for early dysplasia screening in young animals.
-
HD Niche – Simultaneous 3D display of sagittal, axial, and coronal planes for in-depth structure analysis.
-
Smart Volume Slice – Enhances image quality in cross-sectional views of deeper tissues.
-
Virtual Convex – Expands the field of view when using convex probes — ideal for scanning large organs or large animals.
-
HD CZoom – High-definition color zoom for detailed visualization of small vessels and fine anatomical structures.
Ergonomic System Design
- Quiet and energy-efficient operation
- 15.6″ swivel LED monitor
- Control panel with programmable keys
- 4 active transducer ports
- Integrated gel warmer and storage compartments
Veterinary Application Areas
- General veterinary imaging
- Cardiology
- Musculoskeletal diagnostics (MSK)
- Abdominal and soft tissue exams
- Vascular diagnostics
- Emergency and mobile practice
Compatible Transducers
Wide selection of supported probes with frequency ranges:
-
D3C60L – Convex probe (2.0–6.8 MHz)
-
D12140L – Linear probe (7.0–18.0 MHz)
-
D7L40L – Linear probe (4.0–15.0 MHz)
-
V4C40L – Volume probe (2.0–6.8 MHz)
-
D3P64L – Phased array probe (1.5–5.3 MHz)
-
E3C20L – Micro-convex probe (2.0–6.8 MHz)
-
E6C15L – Micro-convex probe (4.0–12.0 MHz)
-
D7L40L-REC – Transrectal probe (4.0–15.0 MHz)
Product images and descriptions are for illustration purposes and may show optional equipment. The actual scope of delivery depends on the quotation/order configuration. Software licenses and optional software features, transducers (probes), as well as accessories/peripherals (e.g., trolley/cart, batteries, holders, transport solutions, cables, adapters, hygiene accessories) are not included and are available separately. Errors, changes and technical modifications reserved.
