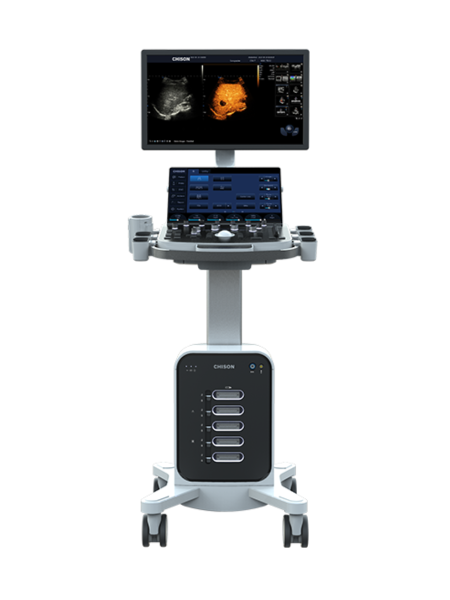

The CHISON SonoMax 7 VET is a high-performance premium cart-based ultrasound system designed for veterinary practice. It combines ergonomic workflow design with advanced imaging — making it a strong solution for a wide range of examinations in small and large animals, in clinics as well as mobile/field workflows.
-
Premium workflow: large monitor + touch interface, structured controls and fast daily operation
-
Ergonomics for routine work: 20 cm height adjustment, tilted keyboard, large trackball
-
Strong imaging performance: MAX++ platform for clear, high-contrast images
-
Expandable connectivity: pinless connection system with 4 active probe ports (optional 5th)
-
Advanced options: SonoContrast, Shear Wave Elastography (P-SWE/2D-SWE), Volume Flow and cardiac tools (configuration-dependent)
Versatile veterinary use cases – built for practice, clinic and mobile workflows
-
General imaging: abdomen, organs, fluid spaces and soft tissue
-
Cardiology: Doppler and functional cardiac assessment
-
MSK: tendons, muscle and soft-tissue structures
-
Vascular assessment: flow visualization and perfusion evaluation (configuration-dependent)
-
Routine and emergency: fast, reproducible exams for daily clinical decision-making
Imaging technologies & processing – for confident diagnostics
The SonoMax 7 VET uses modern signal processing to deliver detailed, high-contrast images:
-
MAX++ platform – high-performance system architecture for stable image quality and efficient workflow
-
FHI+ – harmonic imaging to improve resolution and penetration
-
MAX Precision – fine tuning of frequency/signal control to improve image uniformity and contrast
-
MAX Performance (Coherence Beamforming) – digital optimization to reduce noise and improve signal quality (SNR)
General imaging & elastography (configuration-dependent)
-
SonoContrast – contrast-enhanced imaging to visualize microcirculation (perfusion in very small vessels)
-
Shear Wave Elastography – P-SWE (point measurement) and 2D-SWE (real-time area measurement) including quantitative parameters
-
Volume Flow – 3D technology for real-time visualization of hemodynamic blood flow (dense display)
Cardiology features (configuration-dependent)
-
SonoPW – multi-gate PW Doppler with up to 4 sample gates per cardiac cycle
-
Strain & Strain Rate – functional myocardial assessment tools
User interface & workflow – designed for efficiency
-
23.8″ HD-LED monitor + 15.6″ touch screen (adjustable tilt)
-
12° inclined keyboard, large trackball and precise image control via TGC
-
20 cm height adjustment for ergonomic scanning (sitting or standing)
-
Pinless connector system with 4 active transducer ports (optional 5th)
Compatible transducers (SonoMax 7 VET) – frequency range per probe
List of probe models incl. frequency range (MHz):
-
C1-5 – Convex probe | Frequency: 1.0–6.8 MHz
-
C2-6 – Convex probe | Frequency: 2.0–6.4 MHz
-
S1-5P – Phased array probe | Frequency: 1.0–5.4 MHz
-
S1-5 – Phased array probe | Frequency: 1.0–5.4 MHz
-
S2-8 – Phased array probe | Frequency: 2.0–8.0 MHz
-
L4-10 – Linear probe | Frequency: 4.0–10.0 MHz
-
L3-10 – Linear probe | Frequency: 3.0–10.0 MHz
-
C4-11 – Micro convex probe | Frequency: 4.0–10.7 MHz
-
S3-7 – Phased array probe | Frequency: 4.0–8.0 MHz
-
S4-10 – Phased array probe | Frequency: 4.0–10.0 MHz
Product images and descriptions are for illustration purposes and may show optional features or configurations. Actual scope of delivery depends on the quotation/order configuration. Software licenses and optional software modules, probes/transducers, and accessories/peripherals (e.g., trolley/cart, footswitch, holders, transport solutions, cables, adapters, hygiene accessories) are not included and are available separately. Errors, changes and technical deviations reserved.
