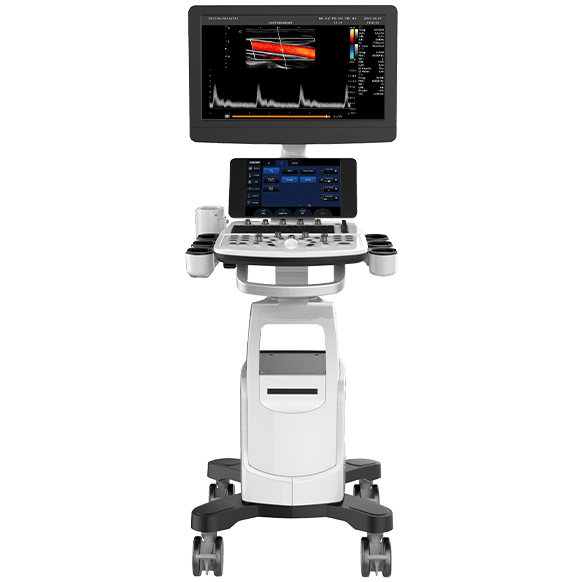

The CBit 6 VET is a modern trolley-based ultrasound system for veterinary medicine that combines advanced imaging, intelligent automation, and ergonomic design. It supports medical professionals across a wide range of clinical applications with high-resolution imaging, fast workflows, and reliable diagnostics – whether in gynecology, cardiology, MSK, or general medicine.
Advanced Imaging – For Reliable Diagnoses
Equipped with modern image optimization technologies, the CBit 6 delivers clear and detailed images to support well-founded clinical decisions:
• μ-scan – Enhances image sharpness through noise reduction and edge enhancement.
• X-contrast – Adjustable contrast settings for optimized tissue differentiation.
• FHI (Frequency Harmonic Imaging) – Provides deeper penetration while maintaining high resolution through adaptive transmission techniques.
• SR Flow – Higher sensitivity and resolution in color Doppler display, ideal for fine vessels.
• Intelligent Focus – Automatically detects the optimal focus position and enhances image quality in the region of interest.
Supported Doppler Modes:
• Pulsed Wave (PW)
• Continuous Wave (CW)
• Color Flow Imaging (CFI)
• Power Doppler
• Directional Power Doppler Imaging (DPDI)
• Tissue Doppler Imaging (TDI)
Workflow Automation – Fast and Intuitive
• Intelligent Doppler – Automatically adjusts ROI direction and PRF, optimizing color and PW Doppler settings.
• Auto-Freeze – Automatically freezes the best image frame.
• Auto Optimization (AIO) – One-touch optimization of image parameters and Doppler baseline.
• Auto Measurement – Automates frequently used standard measurements.
• Auto-IMT – Automatically measures intima-media thickness in vascular examinations.
• Raw Data Management – Allows post-processing image adjustments without re-scanning.
Advanced Diagnostic Functions
• Quantitative Elastography – Displays tissue stiffness using color maps, including strain ratio measurement. Particularly suitable for breast, thyroid, liver, and prostate imaging.
• SonoAI-OB – Automatically detects and measures obstetric parameters such as BPD, HC, AC, FL, and NT.
• Smart HIP – Graph-guided pediatric hip sonography for visualizing dysplasia grades.
• Free Steering M-Mode – Flexible cardiac function analysis from any angle.
• Virtual Convex – Expands the field of view of convex probes for better visualization of large organs (e.g., liver).
• HD CZoom – High-resolution color zoom for small vessels and fetal heart imaging.
Ergonomic System Design
• Quiet and energy-efficient operation
• 19-inch HD LED monitor, swivel ± 90°
• 10.1-inch tiltable high-resolution touch panel
• Control panel with programmable keys
• 4 active probe connectors
• Optional gel warmer and storage compartments
• Optional integrated battery for mobile use
Clinical Applications
• Gynecology and Obstetrics
• Cardiology
• Musculoskeletal Diagnostics (MSK)
• Abdomen and General Medicine
• Vascular Diagnostics
• Urology
• Emergency and Intensive Care
Wide range of ultrasound transducers:
• D3C60L – Convex probe (2.0–6.8 MHz)
• D12L40L – Linear probe (7.0–18.0 MHz)
• D7L40L – Linear probe (4.0–15.0 MHz)
• V4C40L – Volume probe (2.0–6.8 MHz)
• D7C10L – Transvaginal probe (4.0–15.0 MHz)
• D6C12L – Transvaginal probe (4.0–12.0 MHz)
• D3P64L – Phased array probe (1.5–5.3 MHz)
• D5P64L – Phased array probe (2.0–8.0 MHz)
• E3C20L – Micro-convex probe (2.0–6.8 MHz)
• E6C15L – Micro-convex probe (4.0–12.0 MHz)
