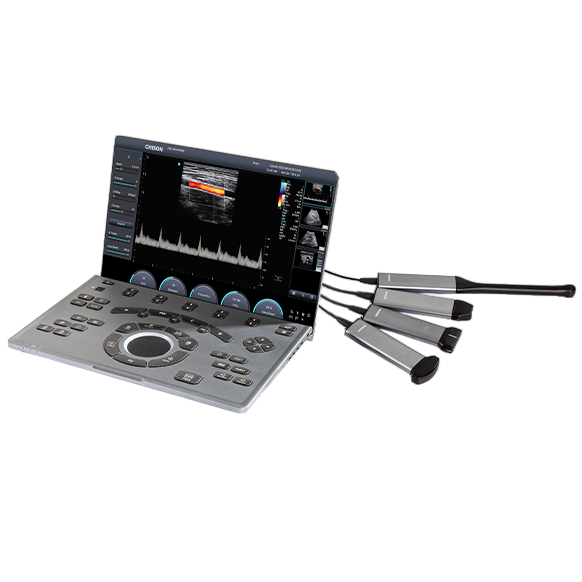

Chison SonoAir 30

The SonoAir 30 is a next-generation ultra-portable ultrasound system. Weighing just 2.1 kg and only 26 mm thick, it is among the thinnest and lightest ultrasound devices in the world. Combining ergonomic design, powerful software, and robust hardware, it’s ideal for both mobile and clinical use — whether in outpatient care, bedside diagnostics, or emergency response.

Ultra-Portable & Durable

Aluminum alloy chassis – lightweight yet durable
Only 26 mm thick and 2.1 kg in weight
Over 180 minutes of continuous scanning per charge
36+ hours standby time

Fast & Efficient

Boot-up in just 25 seconds
Shutdown in 3 seconds
Wake from standby in 3 seconds

Flexible Connectivity & Workflow

4 active probe ports
Quick switch between clinical applications
Optional height-adjustable trolley enables use as a mobile or cart-based system

Innovative User Interface

14.1″ touchscreen with gesture control
Built-in trackpad for enhanced comfort
3D-optimized UI for increased efficiency
Fingerprint lock for secure access

Automated Functions & Imaging Tools

Auto IMT – Automatically calculates max/min/avg intima-media thickness
Auto Thyroid – Automatic boundary detection and measurement of thyroid lesions
Auto Breast – Automated identification and sizing of breast lesions
Quadplex Mode – Real-time display of 2D, Color, PW, and spectrum simultaneously

Clinical Application Areas

General Practice
Vascular Imaging
POC (Point of Care)
Emergency & Critical Care

Compatible Transducers
List of supported probes with frequency and type:

7L – Linear probe (7.5 MHz)
3C – Convex probe (3.0 MHz)
6MC – Micro-convex probe (6.0 MHz)
3S – Phased array probe (2.5 MHz)
6E – Endocavity probe (6.0 MHz)

SKU	ART-2905
Category	Chison Ultrasound Systems
