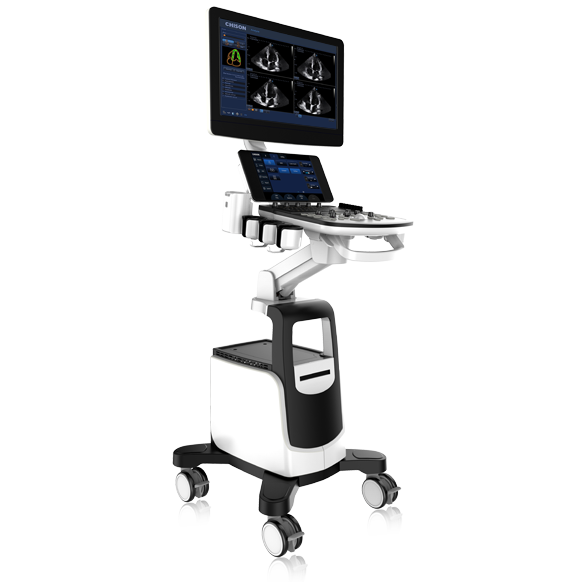

The CBit 8 is a modern trolley-based ultrasound system that combines advanced imaging, intelligent automation, and ergonomic design. It supports medical professionals in a wide range of clinical applications with high-resolution imaging, fast workflows, and reliable diagnostics – whether in gynecology, cardiology, MSK, or general medicine.
Advanced Imaging – For Reliable Diagnoses
Equipped with the latest imaging technologies, the CBit 8 provides clear, detailed, and high-contrast images that support confident clinical decisions:
• μ-scan – Enhances image sharpness through noise reduction and edge enhancement.
• X-contrast – Adjustable contrast for optimized tissue differentiation.
• FHI (Frequency Harmonic Imaging) – Enables deeper penetration while maintaining resolution through adaptive transmission.
• SR Flow – Provides higher sensitivity and resolution in color Doppler imaging, ideal for fine vessels.
• Single Crystal Technology – Offers superior bandwidth and sensitivity for excellent image clarity and penetration.
• Wide-Angle Transvaginal Probe – Up to 210° field of view for comprehensive gynecological imaging.
• HD Niche – Displays sagittal, axial, and coronal planes simultaneously in 3D for detailed structural analysis.
Supported Doppler Modes:
• Pulsed Wave (PW)
• Continuous Wave (CW)
• Color Flow Imaging (CFI)
• Power Doppler
• Directional Power Doppler Imaging (DPDI)
• Tissue Doppler Imaging (TDI)
Workflow Automation – Fast and Intuitive
• Auto-Freeze – Automatically freezes the best image frame.
• Auto Optimization (AIO) – One-button optimization of image parameters and Doppler baseline.
• Auto Measurement – Automates frequently used standard measurements.
• Auto-IMT – Automatically measures intima-media thickness for vascular examinations.
• Raw Data Management – Allows post-processing image adjustments without re-scanning.
• Smart Standby Mode – Instant power-on with extended battery life through intelligent background management.
Advanced Diagnostic Functions
• Quantitative Elastography – Displays tissue stiffness in color maps with strain-ratio measurement. Ideal for breast, thyroid, liver, and prostate.
• Auto Breast Detection – Automatically detects breast lesions and measures their size.
• Auto Follicle Detection – Automatically identifies and measures ovarian follicles for gynecological assessment.
• Smart HIP – Graph-guided hip sonography for pediatric dysplasia assessment.
• LV Tracking – Non-invasive evaluation of left ventricular global and regional function.
• Stress Echo – Supports cardiac stress testing to detect or exclude coronary artery disease.
• Virtual HD / Fetal Face – High-definition rendering for obstetric and fetal visualization.
Ergonomic System Design
• Quiet and energy-efficient operation
• 19-inch HD LED monitor, rotatable ± 90°
• Adaptive control panel, rotatable ± 45° and height-adjustable (0–15 cm)
• 10.1-inch responsive touch panel, tiltable and customizable interface
• 4 active probe connectors
• Optional gel warmer and video printer space
• Internal battery for mobile use
• Hero Kit – Quick, easy, and reliable service solution
Clinical Applications
• Gynecology and Obstetrics
• Cardiology
• Musculoskeletal Diagnostics (MSK)
• Abdomen and General Medicine
• Vascular Diagnostics
• Urology
• Emergency and Intensive Care
Wide range of ultrasound transducers:
• D3C60L – Convex probe (2.0–6.8 MHz)
• V4C40L – Volume probe (2.0–6.8 MHz)
• D7L40L – Linear probe (4.0–15.0 MHz)
• D12L40L – Linear probe (7.0–18.0 MHz, with FHI)
• D7L30L – Linear probe (4.0–10.7 MHz)
• L8M5-V – Linear probe (5.0–14.0 MHz)
• M8L40L – Linear probe (4.0–15.0 MHz)
• D6C12L – Transvaginal probe (4.0–12.0 MHz)
• D7C10L – Transvaginal probe (4.0–15.0 MHz)
• R7-V – Trans-rectal probe (4.0–15.0 MHz)
• D3C20L – Micro-convex probe (2.0–6.8 MHz)
• D3P64L – Phased-array probe (1.5–5.3 MHz)
• D6P64L – Phased-array probe (2.0–8.0 MHz)
• T5P64L – Adult tee probe (4.0–6.0 MHz)
• MT5P48L – Pediatric tee probe (4.0–6.0 MHz)
• D2D16L – Pencil probe (2.0 MHz)
