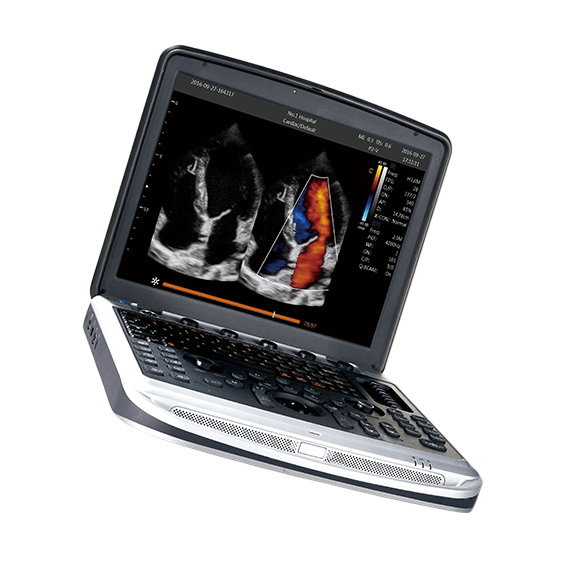

The SonoBook 7 is a portable high-performance ultrasound system designed for mobile use. It combines a compact, robust design with strong imaging performance, intelligent workflow support, and versatile applications in fields such as cardiology, radiology, gynecology, vascular diagnostics, and point-of-care.
Advanced Imaging – For Precise Diagnoses on the Go
The system uses modern technologies to optimize image quality:
-
Q-beam, Q-flow, Q-image – Enhanced signal processing, flow visualization, and image sharpness.
-
FHI (Frequency Harmonic Imaging) – Improved resolution combined with strong depth penetration.
-
X-contrast – Contrast enhancement for improved tissue differentiation.
-
Real-time panoramic imaging (Curved Panoramic) – Ideal for displaying larger anatomical structures.
Supported Doppler Modes:
- Pulsed Wave (PW)
- Continuous Wave (CW)
- Color Doppler
- Power Doppler
- Directional Power Doppler (DPDI)
Automated Workflow Functions
-
AIO (Automatic Image Optimization) – Automatic optimization for B-mode, Color, and Doppler modes.
-
Auto Measurement: Auto IMT, Auto NT, Auto EF, as well as Auto Trace for PW, follicles, and breast lesions.
-
Customizable workflow – Adaptable to individual examination requirements.
-
Cardiac measurement packages – Including customizable workflow support for cardiology applications.
Portable Design and System Performance
- Compact mobile laptop/portable design for flexible use
- 15" medical HD monitor
- Battery life: up to 2 hours in active use, up to 1 week on standby
- Lightweight system with a focus on mobility and fast readiness for use
- Automatic environmental adjustment for indoor and outdoor use
- SSD storage for energy-efficient operation and reliable data management
Connectivity & Storage
- Optional 3 active probe connectors (SonoTriple Connector)
- USB 3.0, DVI-I, S-Video, Video-Out, footswitch connection
- WiFi compatible
- DICOM compatible: Worklist, Structured Report, Storage, Print
- SSD storage with low power consumption and efficient data management
Typical Applications
- Cardiology (including stress echo)
- Radiology & general practice
- Vascular diagnostics
- Emergency and point-of-care applications
- MSK (musculoskeletal imaging)
- Gynecology & obstetrics
- Small parts & internal medicine
Compatible Transducers
The SonoBook 7 supports a versatile range of probes for different clinical requirements:
-
C3-V – Convex probe (2.0–6.8 MHz)
-
L7-V – Linear probe (4.0–15.0 MHz)
-
L12-V – Linear probe with FHI (7.0–18.0 MHz)
-
L8M-V – Linear probe (4.0–15.0 MHz)
-
L8M5-V – Linear probe (5.0–14.0 MHz)
-
L7SVA-V – Linear probe (4.0–15.0 MHz)
-
P2-V – Phased array probe (1.5–5.3 MHz)
-
P5-V – Phased array probe (2.0–8.0 MHz)
-
E6-V – Endocavity probe (4.0–12.0 MHz)
-
E7W-V – Endocavity probe (4.0–15.0 MHz)
-
R7-V – Transrectal probe (4.0–15.0 MHz)
-
MC3-V – Micro-convex probe (2.0–6.8 MHz)
-
MC6-V – Micro-convex probe (4.0–12.0 MHz)
Product images and descriptions are for illustrative purposes only and may show optional equipment. The actual scope of delivery depends on the quotation/order configuration. Software licenses and optional software functions, transducers (probes), as well as accessories/peripherals (e.g. trolley/cart, batteries, holders, transport solutions, cables, adapters, hygiene accessories) are not included and are available separately. Errors, changes, and technical deviations reserved.
