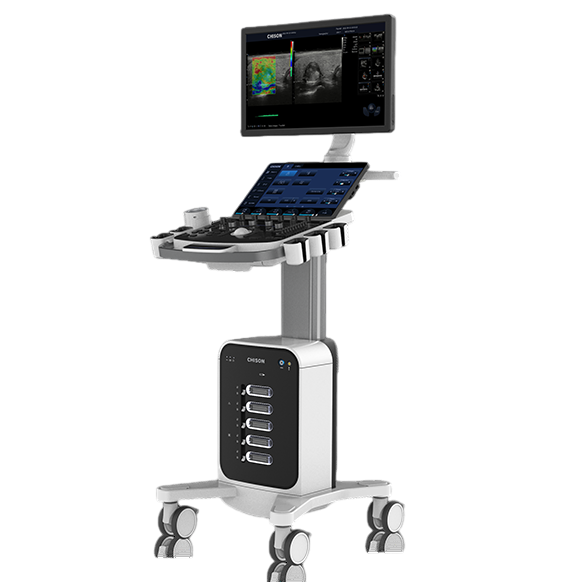

The SonoMax Vet is a premium cart-based ultrasound system designed specifically for veterinary professionals. It combines ergonomic design with powerful imaging technology and advanced workflow automation. Offering a balance of precision and ease of use, it’s ideal for a wide range of veterinary applications — from small animal clinics to equine and large animal diagnostics.
Imaging Technologies – For Precise Veterinary Diagnostics
The SonoMax Vet incorporates advanced image processing technologies to produce clear, detailed, and high-contrast images:
-
FHI+ – Harmonic imaging with improved penetration and resolution.
-
IMAX Precision – Fine-tuned frequency transmission and reception for enhanced contrast and image uniformity.
-
MAXE Platform – Coherence beamforming for digital noise reduction and improved signal quality.
User Interface & Workflow
- 23.8″ Full HD LED monitor + 15.6″ adjustable touchscreen
- Backlit keyboard with 12° tilt and large trackball
- Height-adjustable system (20 cm range)
- Pinless design with 5 active probe ports
- LED status indicators, footswitch port, and optional transport/service kit
General Imaging & Elastography
-
SonoContrast – Microcirculation imaging, e.g. for vascular evaluation
-
Shear Wave Elastography – Point and 2D assessment of tissue stiffness (e.g. tendons, liver, spleen)
-
Smart Measurements – Automated measurements for soft tissue structures, organs, and fluid detection
Cardiology Features
-
SonoPW – Multi-point PW Doppler with up to 4 sample gates per cardiac cycle
-
Strain & Strain Rate – Functional myocardial assessment for veterinary cardiac exams
-
Additional tools: Auto-EF, TDI, AAC, 4-chamber view, C-mode
Veterinary Clinical Applications
- General veterinary imaging
- Cardiology
- Musculoskeletal imaging (MSK)
- Abdominal, organ and fluid assessments
- Vascular diagnostics
- Emergency and mobile practice
Compatible Transducers
List of supported probes (based on official documentation):
-
C1-5 – Convex probe
-
C2-6 – Convex probe
-
S1-5P – Phased array probe
-
S1-5 – Phased array probe
-
S2-8 – Phased array probe
-
L4-10 – Linear probe
-
L5-14 – Linear probe
-
L3-10 – Linear probe
-
L11-20 – Linear probe
-
14-10R – Transrectal probe
-
BL3-12 – Bi-plane probe
-
V2-6 – Volume probe
-
VE4-10 – Micro-convex probe
-
C4-11 – Micro-convex probe
-
T4-6 – TEE probe
