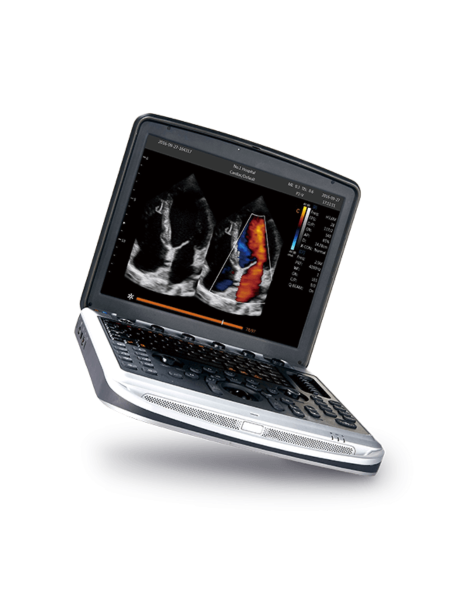

Chison SonoBook 7 VET

The CHISON SonoBook 7 is a powerful portable Power Color Doppler ultrasound system designed for versatile clinical use — from abdominal and vascular imaging to cardiology, OB/GYN, urology and MSK. It combines mobility with an efficient workflow, comprehensive Doppler capabilities and a broad probe portfolio (configuration-dependent).

Display & operation: 15" high-resolution color LED (1024×768), 0–120° adjustable angle, 8 STC sliders, interactive backlit keys
Imaging/Doppler: B/M, Color (CFM), Power (CPA), Directional Power (DPD), PW, Duplex/Triplex; FHI harmonic imaging
Connectivity: 1 active probe port, 2× USB 3.0 + 1× USB 2.0, Ethernet, docking; ECG port (function/configuration-dependent)
Mobility: approx. 5.5 kg (with battery); SonoBAT 92.88 Wh for up to ~2 hours (depending on conditions)
Options (configuration-dependent): DICOM 3.0, elastography, 3D/4D, Sono-AI OB, CW, TDI, Color M & Curved Anatomic M, Super Needle

SKU:	ART-3251
Category:	Chison

Description

The CHISON SonoBook 7 VET is a fast, precise and truly mobile veterinary ultrasound system built for everyday work across small and large animals. Designed to be used across species and applications, it combines a slim, rugged portable design with confident imaging performance — whether you scan in the clinic, in the barn, or on the road.

Ultra-portable: slim and compact, weighing as little as 12 lbs (~5.4 kg)
Field-ready: long battery life for up to 2 hours of outdoor scanning in active mode
Intuitive operation: designed to be so straightforward it can be operated without a manual
Fast response: fast boot-up and smart standby mode for instant power-on
Confident diagnosis: outstanding performance supported by a high-performance architecture

Versatile veterinary applications – optimized for both large and small animals

Large Animal workflow

Durable & robust design for challenging environments
Lightweight for easy carry-on and mobile use
Fast boot-up and standby mode for efficient day-to-day scanning
Full-screen view to enlarge the image area at the push of a button
Button probe support for remote control
Auto-follicle measurement to support reproduction workflows
Built-in dedicated presets for consistent results
FHI to deliver excellent performance with high penetration

Small Animal workflow

Light & slim design to save space indoors
Button probe support for streamlined operation
Fast boot-up and standby mode for quick exams
Longer battery life up to 2 hours
Dedicated presets and calculation packages for different species
Full-screen view to enlarge the image area
Q-beam to ensure high frame rate (helpful for rapid breathing in small animals)

Standby mode & mobility – built for clinics and field practice

Standby mode: smart backstage management for extended battery life
Instant power-on for fast return to scanning

Optional cart workflow (for maximum comfort)

SonoDocking (DVI-I, Foot-Switch, Video-Out, Remote, S-Video)
Anti-theft lock, accessory basket, hand rest and printer socket
SonoTriple Connector (triple connector option) and pneumatic height Adjustment

Veterinary imaging examples shown by CHISON
Examples illustrated include equine cardiac imaging (shown at 31 cm depth in C mode), canine cardiac imaging (B/BC and PW mode), and abdominal/MSK examples such as canine kidney, bladder, intestine and equine tendon (B mode).

Compatible transducers for SonoBook 7 VET:

C3-V – Convex probe | Frequency: 2.0–5.3 MHz
MC3-V – Micro-convex probe | Frequency: 2.0–6.4 MHz
MC6-V – Micro-convex probe | Frequency: 3.0–10.7 MHz
L7-V – Linear probe | Frequency: 4.0–10.0 MHz
L12-V – Linear probe | Frequency: 7.0–15.0 MHz
L8M5-V – Linear probe | Frequency: 6.4–11.0 MHz
L8M-V – Linear probe | Frequency: 6.4–11.0 MHz
L12b-V – Linear probe | Frequency: 5.0–10.0 MHz
L7SVA-V – Linear probe | Frequency: 6.0–15.0 MHz
L18-V – Linear probe | Frequency: 13.3–18.0 MHz
L10i-V – Linear probe (small footprint) | Frequency: 4.0–8.0 MHz
R7-V – Transrectal probe | Frequency: 5.0–10.0 MHz
L7V-V – Linear transrectal probe | Frequency: 4.0–10.0 MHz
P2-V – Phased array probe | Frequency: 1.5–4.0 MHz
P5-V – Phased array probe | Frequency: 4.0–8.0 MHz
P3T-V – Phased array probe | Frequency: 1.5–4.0 MHz
S3-7-V – Phased array probe | Frequency: 4.0–8.0 MHz
S4-10-V – Phased array probe | Frequency: 4.0–10.0 MHz

Product images and descriptions are for illustration purposes and may show optional features or configurations. Actual scope of delivery depends on the quotation/order configuration. Software licenses and optional software modules, probes/transducers, and accessories/peripherals (e.g., docking, footswitch, cart, holders, transport solutions, cables, adapters, hygiene accessories) are not included and are available separately. Errors, changes and technical deviations reserved.
